Toyota High Capacity Electric Forklift

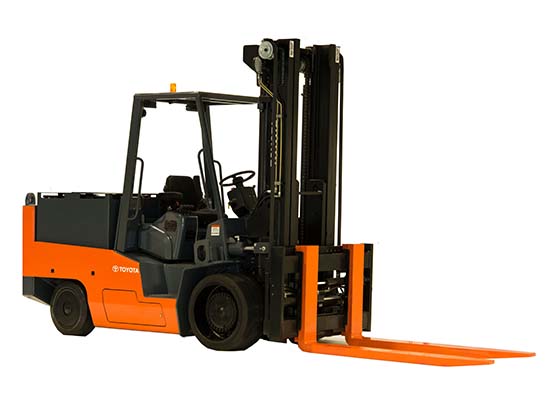

Toyota High-Capacity Electric Cushion Forklift

Making sure all-electric fleets stay all-electric, the Toyota High-Capacity Electric Cushion forklift is your perfect answer for heavy lifting challenges.

  • 15,000 – 40,000 lb. Capacity
  • Load Sensing Hydraulic System
  • Heavy Duty Planetary Drive Axle
  • Drum-Type Brake System
  • Transistor Control Monitors
STANDARD FEATURES
  • Finger-Tip Hydraulic Controls
  • Tilt Steering Column
  • Left-Hand Shift Level
  • Low-Height, Non-Skid Steps
DESCRIPTION

The Toyota High-Capacity Electric Cushion Forklift gives you the versatility to lift massive loads without the need of traditional IC engines. The versatile electric power and high visibility combined with a large 92-inch wheelbase means you’ll have the power you want and the maneuverability you need for your heaviest indoor duties.

Every forklift in the Toyota THD line comes equipped with a MD4 7” Touchscreen Display. It combines the rugged power of the THD model lineup with the latest advancements in forklift technology to put ultimate customization, advanced diagnostics, and pertinent forklift information right at your fingertips.

MODEL CAPACITY* MAX TRAVEL SPEED (MPH) MAX LIFT SPEED (FPM) MAX GRADEABILITY (%) BASIC RIGHT ANGLE STACK**
THDE1500-24
15,000 lbs.
5.2
39.5
15
134″
THDE1800-24
18,000 lbs.
5
39.5
22
139.2″
THDE2000-24
20,000 lbs.
4.7
34.5
19.9
140″
THDE2200-24
22,000 lbs.
4.6
34.5
18.7
140″
THDE3000-24
30,000 lbs.
4.1
24
13.1
153.8″
THDE3000-30
30,000 lbs.
4.1
24
12.5
156.35″
THDE3500-24
35,000 lbs.
4
24
12
156.3″
THDE3500-30
35,000 lbs.
3.9
16
10.8
173.5″
THDE4000-24
40,000 lbs.
3.7
16
10.6
173.5″
THDE4000-30
40,000 lbs.
3.7
16
9.9
173.5″

*Based on 24” load center.**Based on load length and clearance.
