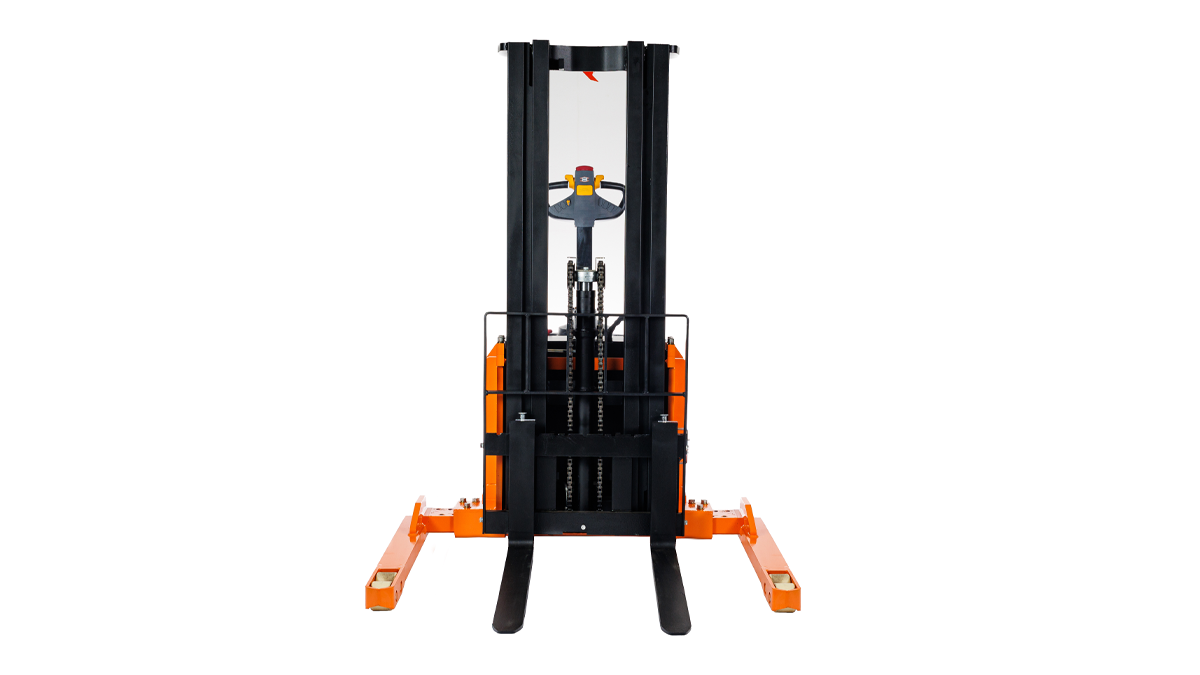

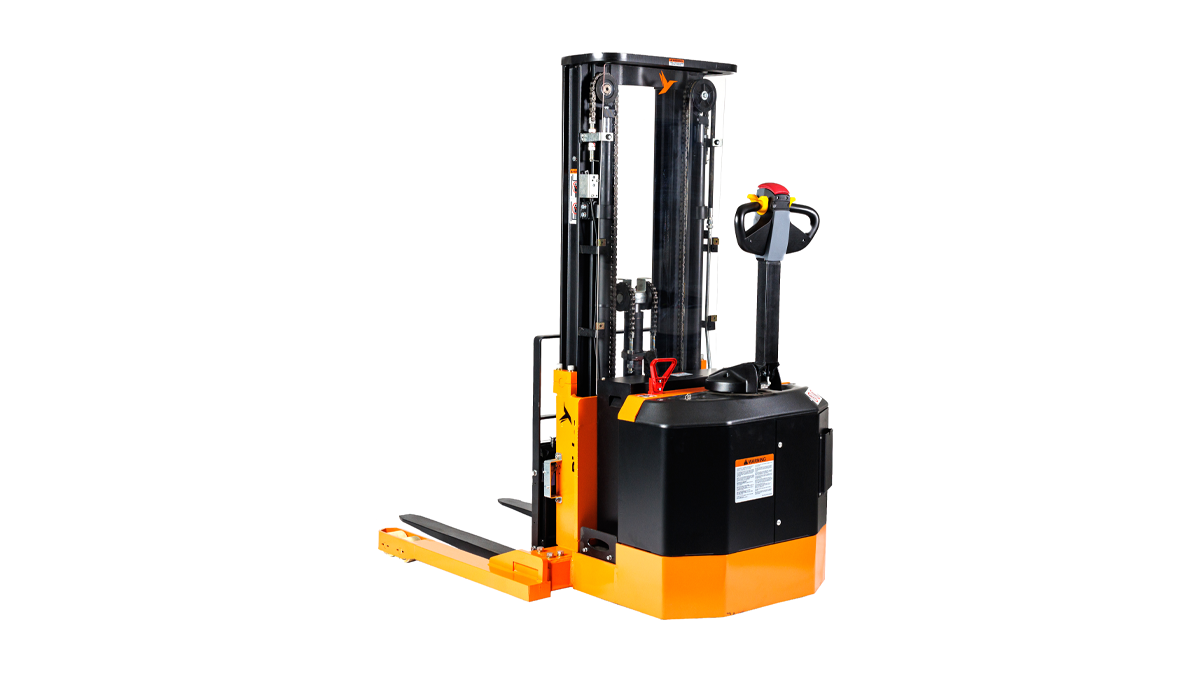

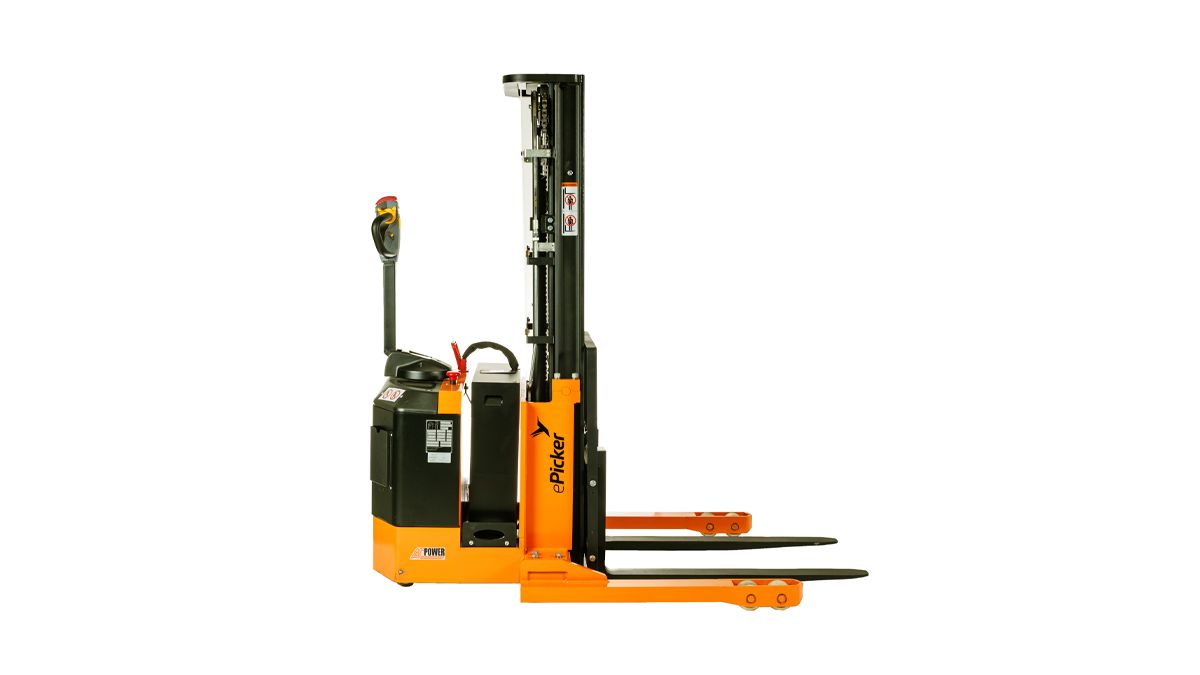

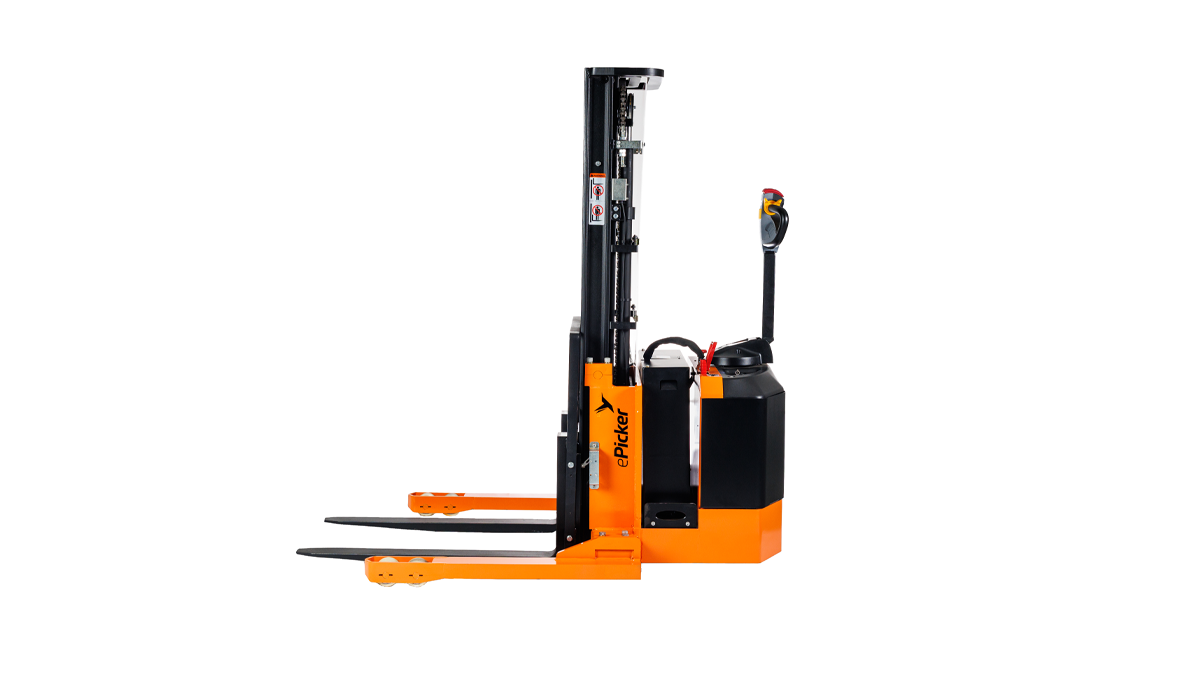

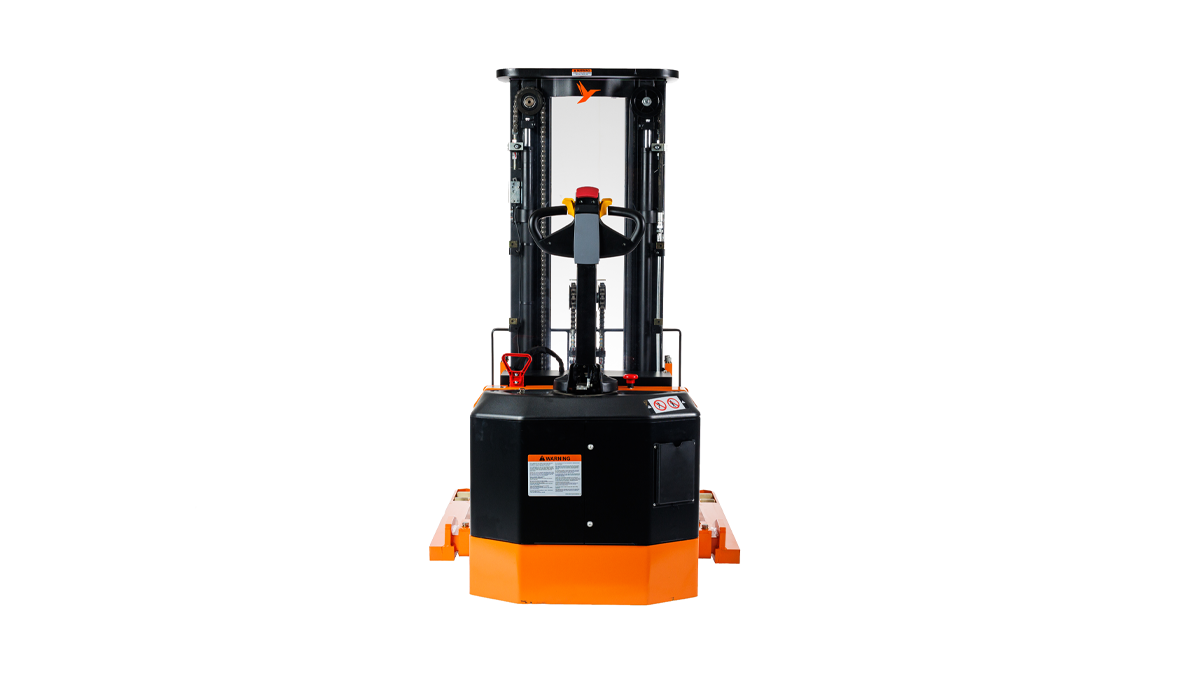

ePicker Performance Walkie Straddle Stacker ESP15/20
Performance Walkie Straddle Stacker ESP15/20 delivers the most capability per dollar. Available in capacities of 3000 and 4000 pounds, ePicker ESP15/20 can lift pallets as high as 177 inches while operating at half the cost of a comparable sit-down forklift.
- 4,000lb Lifting Capacity
- Dual load capacity with (2) 4″ x 2.9″ polyurethane wheels
- Lift cylinder with hard chrome plated rods for smooth lifting
- 24-Volt ZAPI AC inverter and matching drive motor for high performance
- Electromagnetic brake for efficient stopping power
- Ergonomic operator handle with accessible controls
STANDARD FEATURES
- Travel, lift, lower functions within operator handle
- Adjustable Straddle Legs
- Regenerative Braking
- Creep Speed Handle Control
- Gas Assist Spring Handle
- Low Battery Interrupt
- Hour Meter BDI Combo Gauge
- Key Switch
The ePicker Performance Walkie Straddle Stacker ESP15/20 can lift pallets as high as 177 inches while operating at half the cost of a comparable sit-down forklift. It weighs just half of what they can lift, reducing both wear and tear on components and danger to personnel in the area of operation.
Capacity
4000 lbs. Capacity @ 24″ Load Center ITA Class II Fork Carriage
Performance Travel
Variable from 0 mph to 3.4 mph empty
Variable from 0 mph to 3.1 mph loaded
Lift
Up to 37 fpm empty. Up to 32 fpm loaded
Lowering
Up to 29 fpm empty. Up to 56 fpm loaded
Tires/Wheels Drive
9″ x 3″ polyurethane
- 48″ Tall Load Bracket
- Side-Shifting Fork Carriage
- 224AH 24V AGM Battery Pack with 110VAC Plug in Charger
- Industrial Battery
- Battery Compartment Rollers
- Class II 36″ and 48″ forks
- Traction Drive Tire – Poly
- Traction Drive Tire – Rubber
- Fixed Straddle Legs 46″ ID / 54″ OD
- Fixed Straddle Legs 50″ ID / 58″ OD
DESCRIPTION
Dual Load
(2) 4″ x 2.9″ polyurethane
Hydraulics
Lift cylinder has hard chrome plated rods. Pump unit including motor, solenoid, gear pump, and pressure compensated lowering valve are mounted high in the power compartment for ease of service.
Electrical
24-Volt ZAPI AC inverter, travel control with matching drive motor provide high performance throughout the entire speed range. Travel speed remains constant relative to throttle position regardless of load. Separately fused power control circuits, quick disconnect EPD power cut off, and hour meter / battery discharge indicator combination gauge complete the system.
Battery
Compartment: 31.6″ x 13.1″ x open. Andersion 175 Red, position A-11 Minimum battery weight 1090 lbs. ePicker offers options for an industrial battery or a maintenance-free battery pack.
Brakes
Electromagnetic brake is mounted on the motor armature shaft multiplying the braking power through the drive transmission.
Brake is applied when the control arm is in the vertical or horizontal handle position. System features anti-roll back and neutral braking.
Tiller Arm Control
Travel, lift, and lower functions are located in the ergonomic operator handle. All operator controls are accessible without having to lift the hand from the handle.
Angle grips are designed to allow easy operation with either hand. Wrap around guard, reversing switch, thumb control, and horn are standard.
Top mounted tiler arm offers excellent operator comfort and minimum steering effort. Gas assisted spring gently returns handle to vertical position.
Transmission
Vertically mounted drive motor is direct mounted to gear housing. Oil bathed bevel gear drive train with tapered rollwer bearings transfers power to axle. State of the art optimized gear technology supplies advantages such as zero maintenance, low noise level, high efficiency and high pefromance.
Frame and Mast
Bolt-on high visibility mast, features I-beam construction, with lift cylinders positioned on the outer I-beam for best view through mast. Dual lifting chains.Standard fixed straddle leg inside dimension (ID) is 42″ with 46″ and 50″ sizes available. Four inch wide straddle legs = ID + 8″ Class II ITA fork carriage with 36″ tall load back rest. Forks are adjustable from 8″ ID to 31″ OD.
Bearings Drive Wheels
Tapered roller bearings sealed in oil bath.
Load Wheels
Sealed ball bearings.
Serviceability
Removable two piece power head cover allows for easy maintenance and access to all vehicle components.
